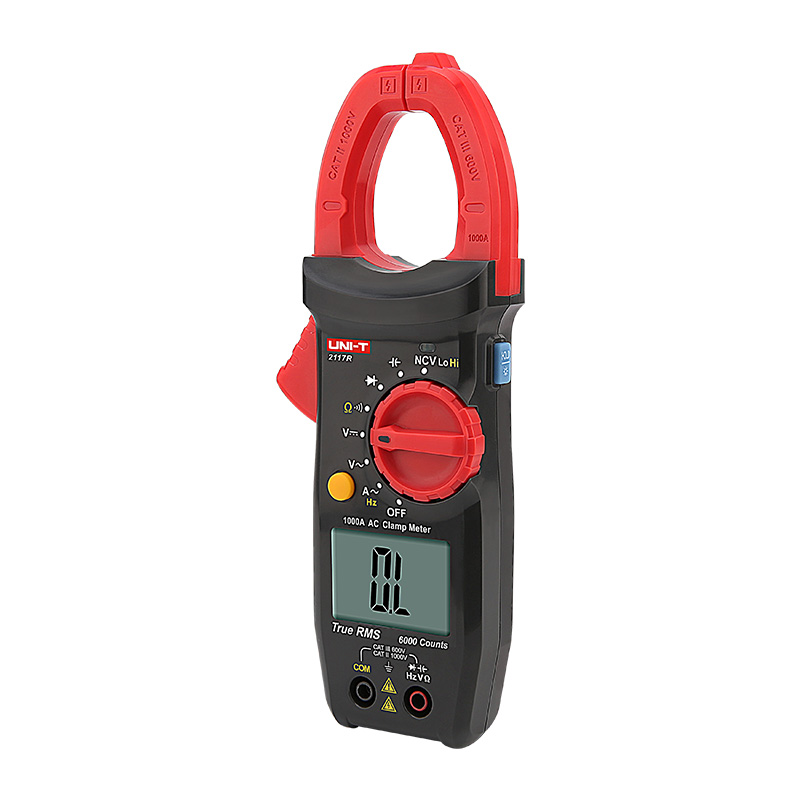

Uni-T True RMS 1000A AC Clamp Meter 2117R

Technical Data

Certifications: CE/UKCA
AC current (A): 1000A ±(1.5%+4)
AC frequency (Hz): 20Hz-10kHz ±(1.0%+5)
AC voltage (V): 1000V ±(1.0%+2)
DC voltage (V): 1000V ±(0.7%+3)
Resistance (Ω): 6mF ±(4%+5)
Power: AAA 1.5V x 2
Product size: 204 x 63 x 38mm
Product net weight: 210g

Scope of Delivery

• 1 x Uni-T True RMS 1000A AC Clamp Meter 2117R
• 1 x Batteries
• 1 x Test Leads
• 1 x Gift box
• 1 x Carring bag
• 1 x English manual

12 Months UNI-T Warranty

RM 163.00
Availability: In Stock
SELECT QTY:
+
ESTIMATED DELIVERY DATE:
30/05/2026 - 04/06/2026
SHARE

Uni-T True RMS 1000A AC Clamp Meter 2117R

Unit-T Measuring Instruments - Uni-T True RMS 1000A AC Clamp Meter 2117R

The UNI-T True RMS 1000A AC Clamp Meter 2117R is designed for electricians, technicians, and industrial maintenance professionals who require accurate and reliable electrical measurements. Featuring True RMS technology, this digital clamp meter delivers precise readings for AC current up to 1000A and AC/DC voltage up to 1000V. Its large backlit LCD display, auto-ranging function, and non-contact voltage (NCV) detection make troubleshooting and testing safer and more efficient in various working environments.

Features
• Safety rating: CATII 1000V/CATⅢ 600V
• Display count: 6000
• Jaw opening: 33mm
• Auto range
• True RMS
• NCV
• Continuity test
• Diode test
• LCD backlight
• Continuity buzzer
• Data hold
• Input protection
• Low battery indication (≤2.5V approximately)
• Auto power off (Approximately 15 minutes)

More Uni-T Measurement Instruments product range for your choices.
