Uni-T Intelligent Digital Multimeter UT71C

Technical Data

Certifications: CE, UKCA
DC voltage (V): 1000V ±(0.025%+5)
AC voltage (V): 1000V ±(0.4%+30)
DC current (A): 10A ±(0.15%+15)
AC current (A): 10A ±(0.7%+15)
Resistance (Ω): 40MΩ ±(1%+20)
Capacitance (F): 20mF ±(1.2%+20)
Frequency (Hz): 40Hz~400MHz ±(0.01%+8)
Temperature (°C): -40°C~1000°C ±(1%+30)
Temperature (°F): -40°F~1832°F ±(1.5%+50)
Power: 9V battery (6F22)
Display: 73 x 50mm
Product color: Red and grey
Product size: 200 x 93 x 40mm
Product net weight: 384g

Scope of Delivery

• 1 x Uni-T Intelligent Digital Multimeter UT71C
• 1 x Battery
• 1 x Test leads
• 1 x Test clips
• 1 x USB interface cable
• 1 x PC software CD
• 1 x Gift box
• 1 x Carrying bag
• 1 x Point contact temperature probe
• 1 x English manual

12 Months UNI-T Warranty

RM 1,096.00
Availability: In Stock
SELECT QTY:
+
ESTIMATED DELIVERY DATE:
31/05/2026 - 05/06/2026
SHARE

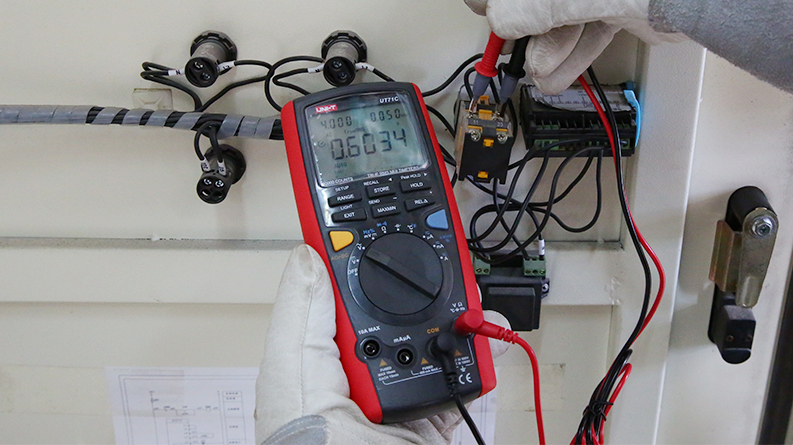

Uni-T Intelligent Digital Multimeter UT71C

Unit-T Measuring Instruments - Uni-T Intelligent Digital Multimeter UT71C

The Uni-T Intelligent Digital Multimeter UT71C is a high-precision True RMS measuring instrument designed for professional electrical, industrial, and electronic applications. Featuring a 40,000-count display, auto-ranging capability, and exceptional measurement accuracy, the UT71C delivers reliable results for AC/DC voltage, current, resistance, capacitance, frequency, temperature, and continuity testing. Its advanced design makes troubleshooting and diagnostics faster and more efficient for technicians and engineers. Based on published specifications, the UT71C supports measurements up to 1000V, frequency testing up to 400MHz, and temperature measurements from -40°C to 1000°C.

Features
• Display count: 40000
• True RMS
• Duty cycle
• Continuity buzzer
• MAX/MIN/REL modes
• Peak/data hold
• Analog bar graph
• LCD backlight
• Misplug alarm
• Auto power off
• Low battery indication
• Data logging
• Auto and manual ranges selectable
• USB interface, Bluetooth
• Smart phone APP: iDMM
• Works with UT-D07A Bluetooth adaptor
• Download from Apple Store or Google Play Store
