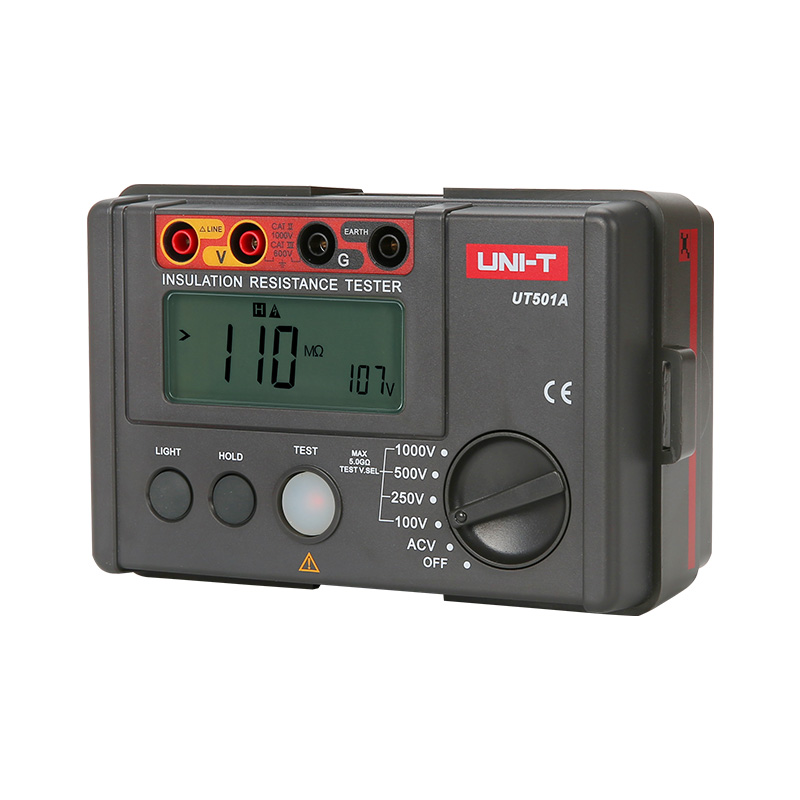

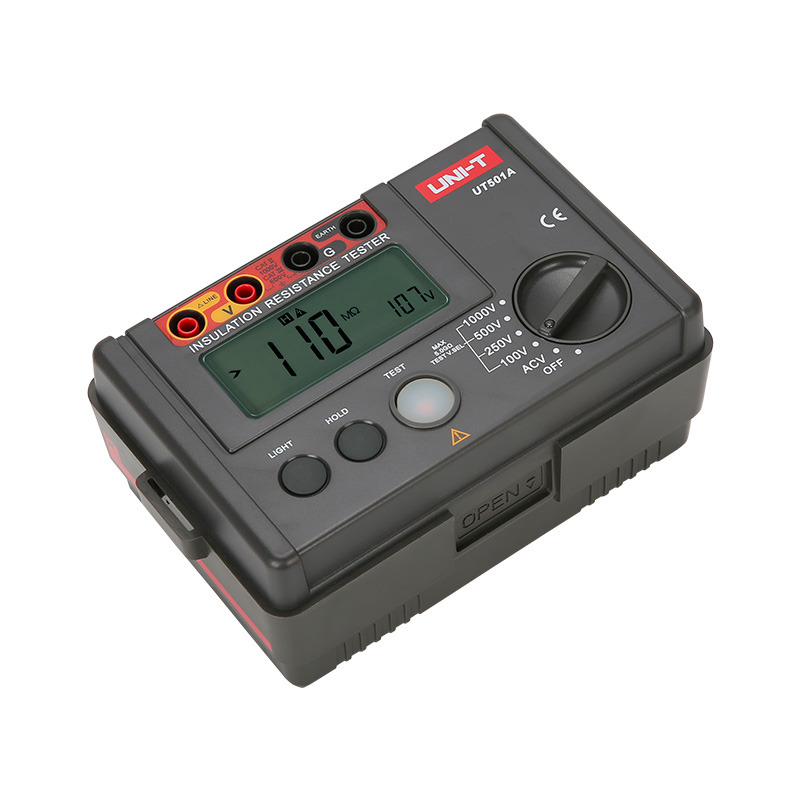

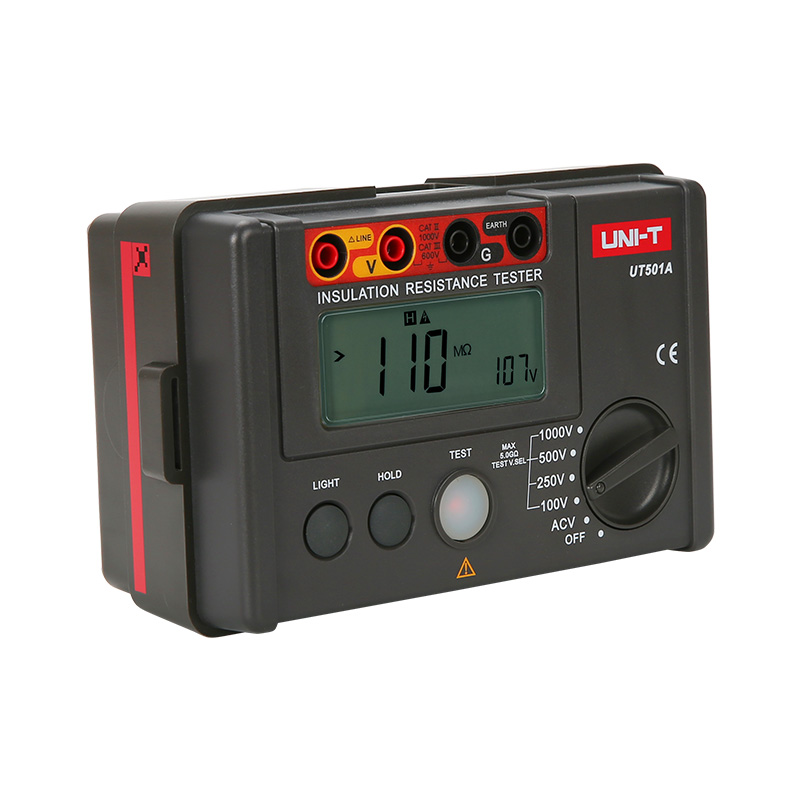

Uni-T Insulator Resistance Tester UT501A
Technical Data
Insulation resistance (Ω):
• Test voltages: 100V/250V/500V/1000V
• 100V: 0MΩ~100MΩ ±(3%+5)
• 250V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5)
• 500V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5)
• 1000V: 0MΩ~99.9MΩ ±(3%+5) / 100MΩ~5GΩ ±(5%+5)
• Load current: 50V (R=50kΩ) 1mA, 100V (R=100kΩ) 1mA, 250V (R=250kΩ) 1mA, 500V (R=500kΩ) 1mA, 1000V (R=1MΩ) 1mA 0%~10%
Short-circuit current: <2mA
AC voltage (V): 30V~750V ±(2%+3)
Power: 1.5V battery (LR6) x 6
Display: 70.6 x 34mm
Product color: Red and grey
Product size: 150 x 100 x 71mm
Product net weight: 500g
Scope of Delivery
• 1 x Uni-T Insulator Resistance Tester UT501A• 1 x Batteries
• 1 x Test leads
• 1 x Alligator clips
• 1 x Gallus
• 1 x Gift box
• 1 x Carrying bag
• 1 x English manual
12 Months UNI-T Warranty
Category:
RM 290.00
Availability:
In Stock
SELECT QTY:
−
+
ESTIMATED DELIVERY DATE:
01/05/2026 - 06/05/2026
