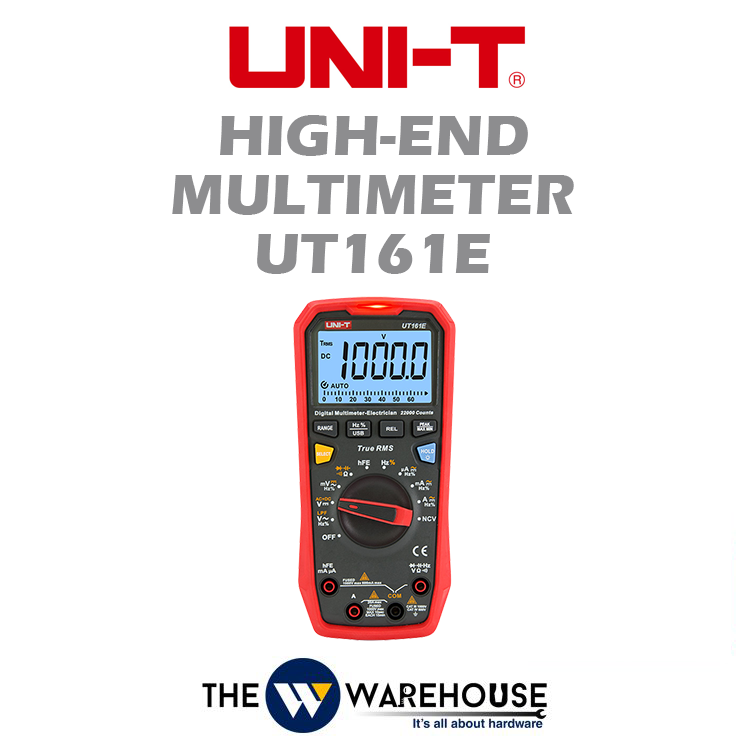

Uni-T High-End Digital Multimeter UT161E

Technical Data

Certifications: CE, UKCA, cETLus
AC voltage (V): 1000V ±(0.8%+10)
DC voltage (V): 1000V ±(0.05%+5)
AC current (A): 20A ±(0.8%+10)
DC current (A): 20A ±(0.5%+10)
Capacitance (F): 220mF ±(3%+5)
Frequency (Hz): 220MHz ±(0.01%+5)
Duty cycle (%): 0.1%~99.9% ±(2%+5)
Power: 1.5V battery (R03) x 4
Product size: 190 x 90 x 50mm
Product net weight: 350g

Scope of Delivery

• 1 x Uni-T High-End Digital Multimeter UT161E
• 4 x Battery
• 1 x Gold plated test leads
• 1 x USB cable
• 1 x Multi-purpose socket
• 1 x English manual
• 1 x Gift box

12 Months UNI-T Warrant

RM 588.00
Availability: In Stock
SELECT QTY:
+
ESTIMATED DELIVERY DATE:
31/05/2026 - 05/06/2026
SHARE

Uni-T High-End Digital Multimeter UT161E

Unit-T Measuring Instruments - Uni-T High-End Digital Multimeter UT161E

The Uni-T High-End Digital Multimeter UT161E is a professional-grade testing instrument designed for engineers, electricians, technicians, and industrial maintenance professionals. Equipped with True RMS technology, the UT161E delivers highly accurate measurements of AC/DC voltage, current, resistance, capacitance, frequency, and temperature, making it suitable for complex electrical troubleshooting and diagnostics.

Features
• Display count: 22000
• Bandwidth (Hz): 40~10kHz
• LPF ACV
• ACV+DCV
• Transistor hFE
• Peak Hold
• Analog bar: 46
• True RMS
• MAX/MIN
• Data hold
• Backlight
• USB communication
• Diode test
• Continuity test
• NCV (audible/visual alarm)

More Uni-T Measurement Instruments product range for your choices.

To learn more about Uni-T full range products visit W. Hong Guan Hardware Sdn Bhd.
