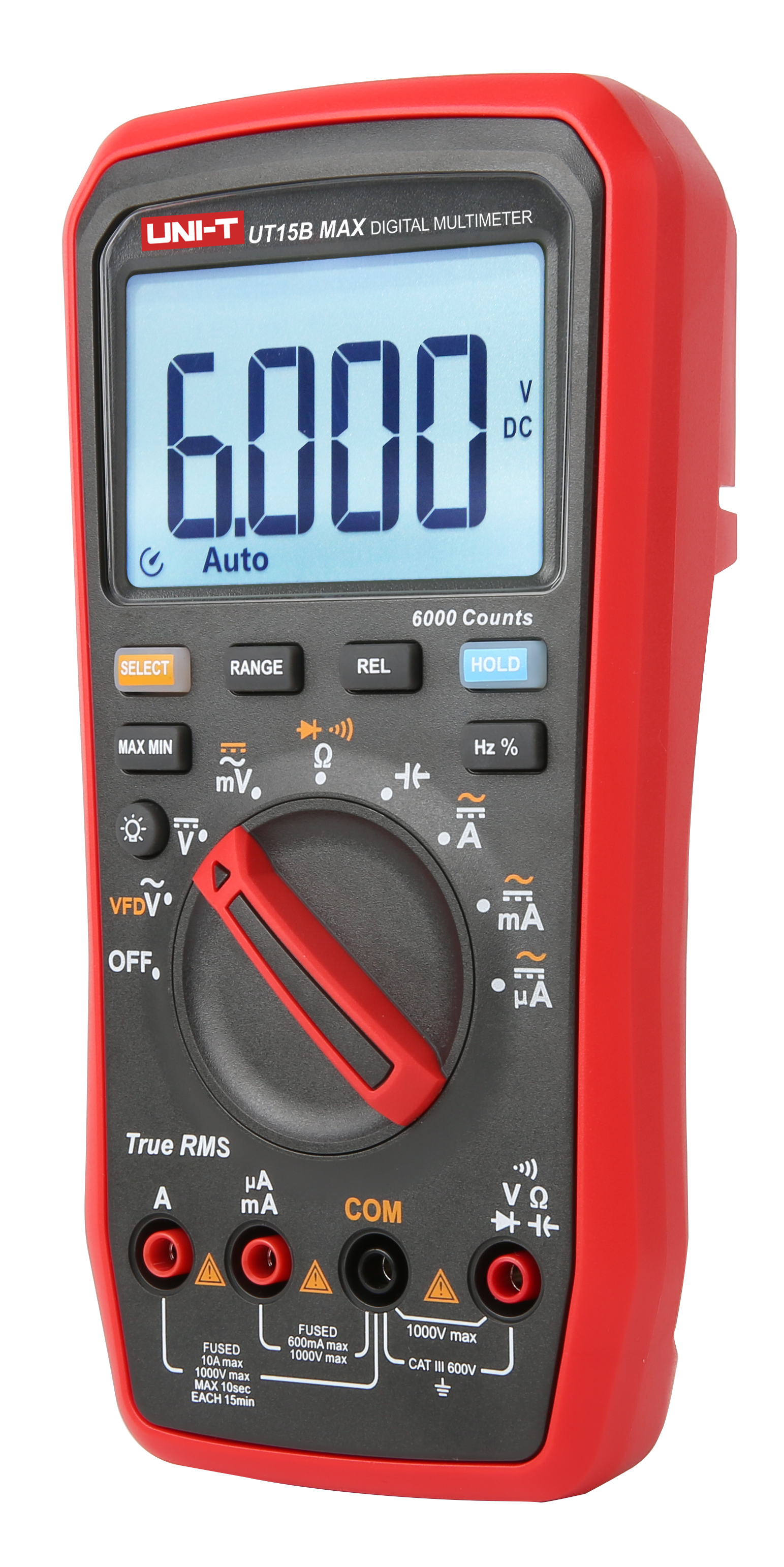

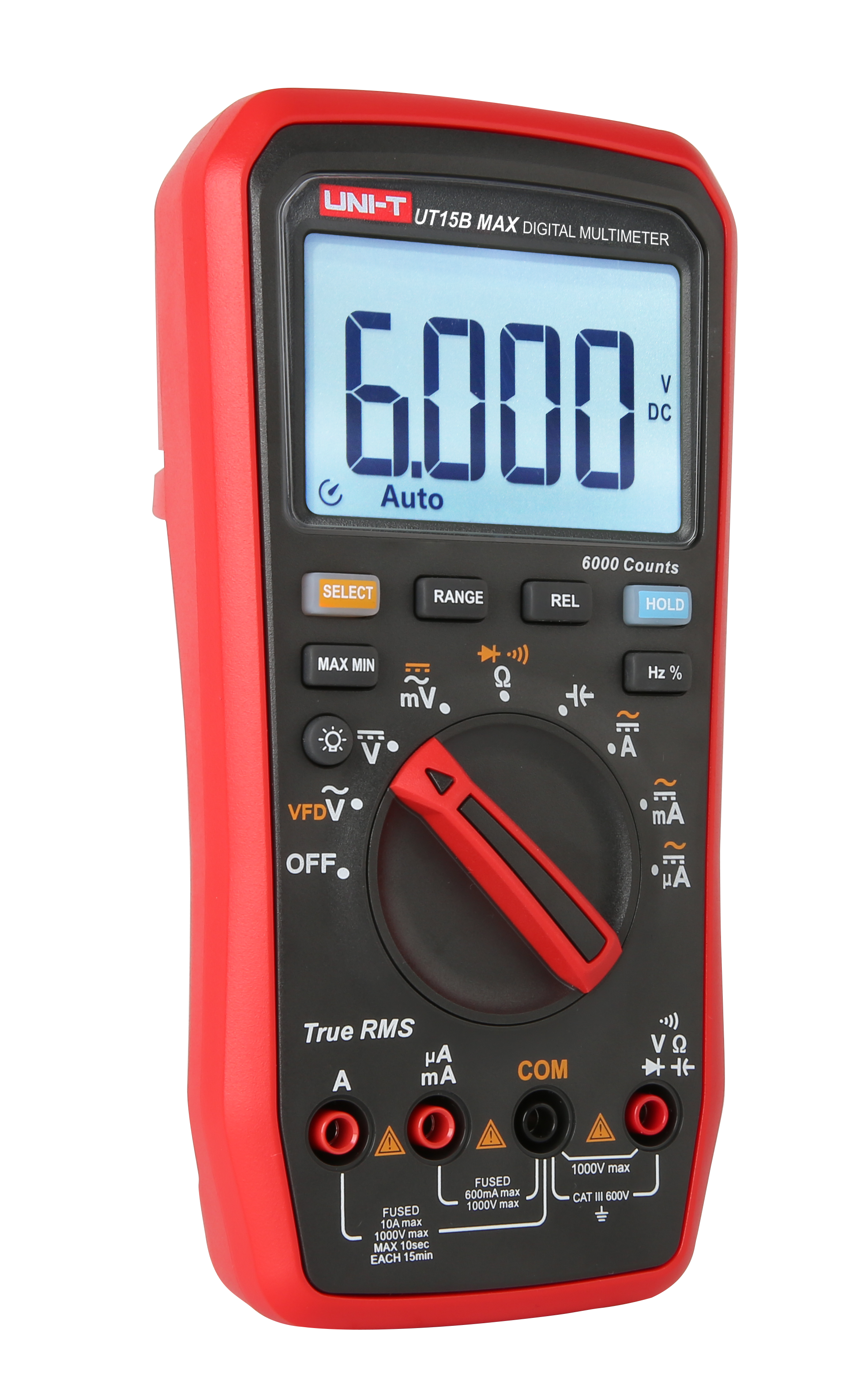

Uni-T Max True RMS Digital Multimeters UT15B-MAX
Technical Data
Certificates: CE, UKCA, cETLus, REACH, RoHS
Overvoltage category: CATⅢ 600V
DC voltage (V): 600.0mV/6.000V/60.00V/600.0V/1000V ±(0.4%+3)
AC voltage (V): 600.0mV/6.000V/60.00V/600.0V/1000V ±(0.5%+5)
VFD (Voltage): 600.0V ±(8%)
DC current (A): 600.0µA/6000µA/60.00mA/600.0mA/6.000A/10.00A ±(1.2%+3)
AC current (A): 600.0µA/6000µA/60.00mA/600.0mA/6.000A/10.00A ±(1.2%+3)
Resistance (Ω): 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ ±(0.5%+2)
Capacitance (F): 6.000nF/60.00nF~600.0µF/6000µF ±(2.0%+5)
Frequency (Hz): 10Hz~10MHz ±(0.1%+3)
Duty cycle: 1%~99.9%
Power: 1.5V AA battery x 2
Product colour: 426U+1797C
Product size: 182 x 91 x 45mm
Product net weight: 455g
Scope of Delivery
• 1 x Uni-T Max True RMS Digital Multimeters UT15B-MAX• 2 x Batteries
• 2 x Test lead (normal gold plated probe & fine-tipped probe)
• 1 x Magnetic hanger
• 1 x User manual
12 Months UNI-T Warranty
Category:
RM 430.00
Availability:
In Stock
