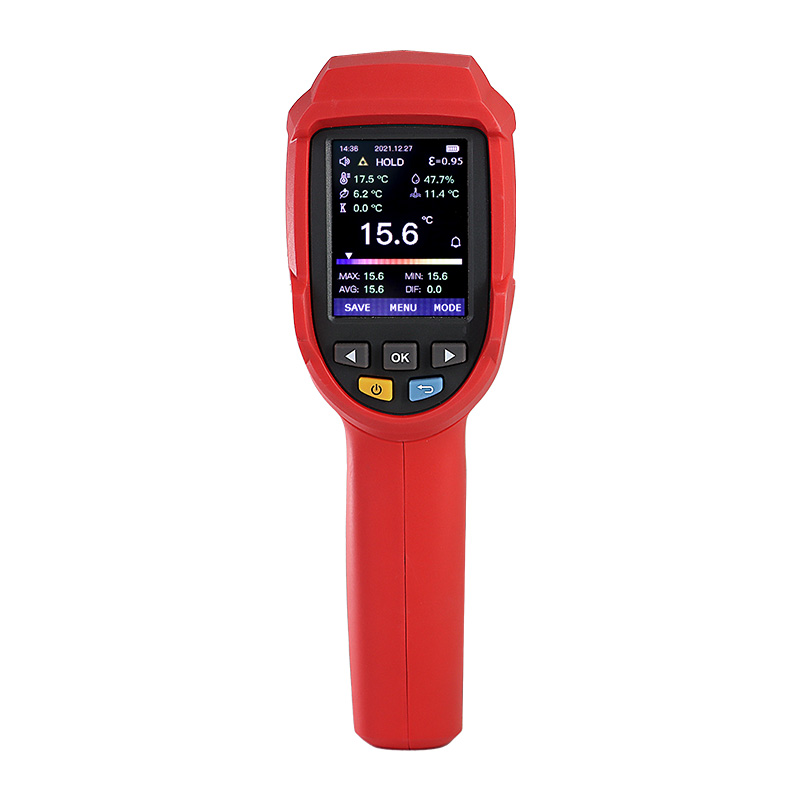

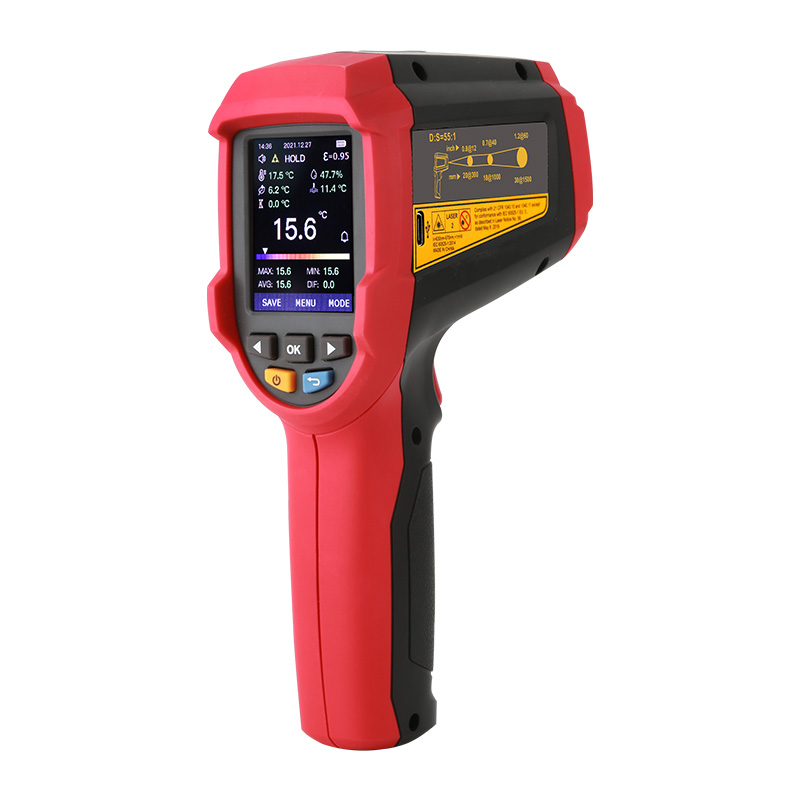

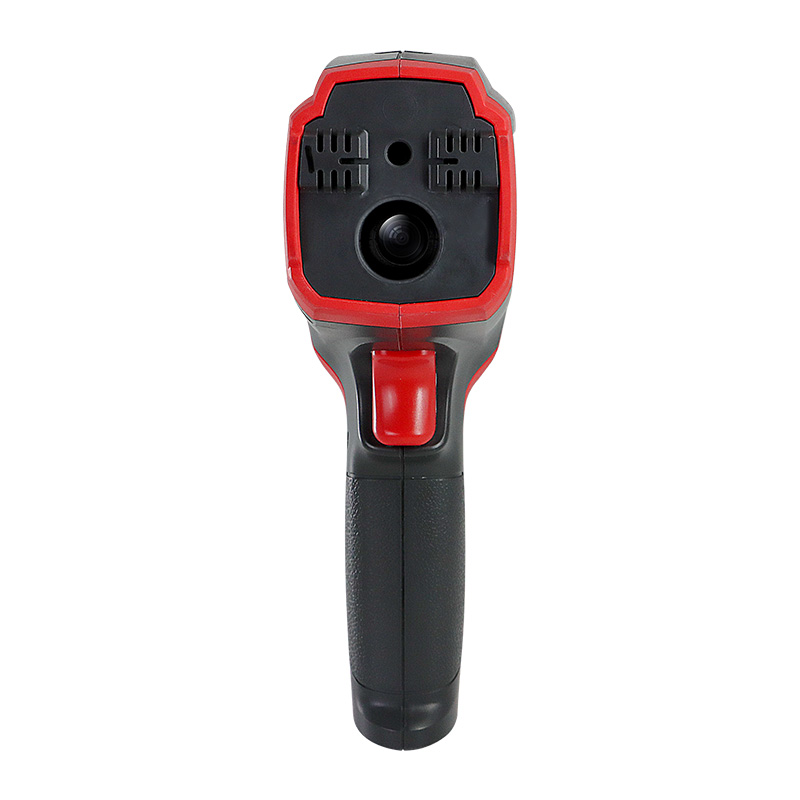

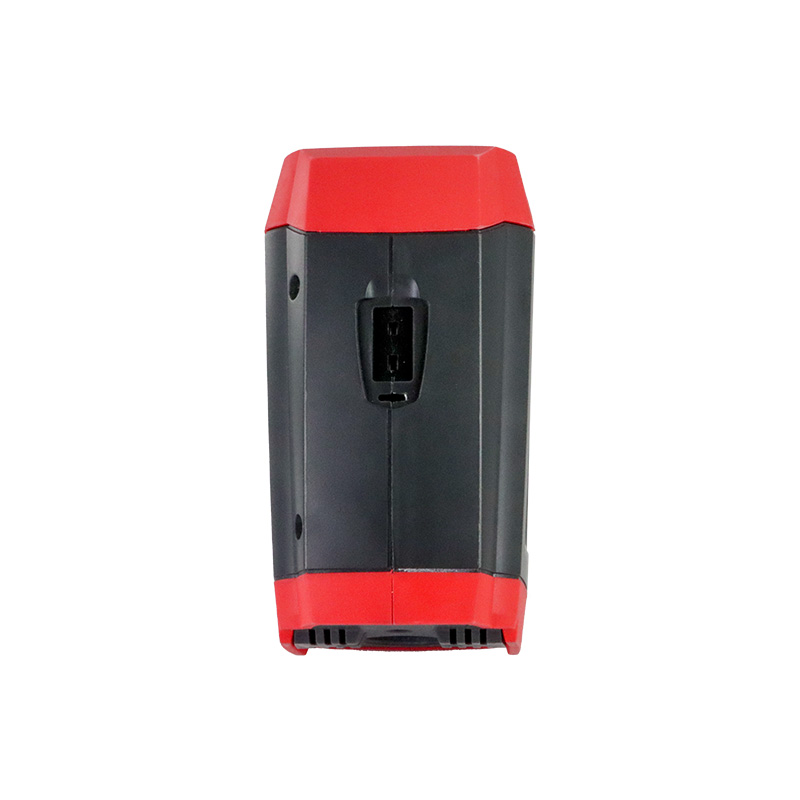

Uni-T Infrared Thermometer UT305C+
Technical Data
Certifications: CE, UKCA
Measurement range:
• Infrared temperature measurement: -50°C~2200°C (-58.0℉～3992℉)
• The environment temperature measurement: -10°C~50°C (14℉～122℉)
• Relative humidity: 10%RH~90%RH
• Type K thermocouple: -50°C~1370°C (-58.0℉～2498℉)
Accuracy:
• Infrared temperature measurement: -50°C~0°C ±(1.0℃+0.1℃/℃), -58℉~32℉ ±(2.0℉+0.1℉/℉), 0°C~2200°C ±1.0℃ or ±0.01×t℃ (Which is greater), 32℉~3992℉ ±2.0℉ or ±0.01×t℉ (Which is greater)
• The environment temperature measurement: -10°C~0°C (14℉~32℉), ±1.0°C (±2.0℉), 0°C~40°C (32℉~104℉), ±0.5℃ (±1.0℉), 40°C~50°C (104℉~122℉), ±1.0℃ (±2.0℉ )
• Relative humidity: ±5%RH
• Type K thermocouple: ±(0.005×t+1.5)℃ / ±(0.005×t+3.0)℉
Diastance ratio (D:S): 55:1
Emissivity: 0.1~1.0 (adjustable)
Spectral response: 8µm~14µm
Repeatability of infrared temperature measurement: ±0.005×t℃ (℉) or 1℃ (2℉) (Which is greater)
Standard k-type thermocouple probe (bead type):
• Measurement range: -40°C to 260°C (-40°F to 500°F)
• Accuracy: 0.075× T (t is measured temperature)
• Length: 1 m (40 in) long K type thermocouple cable with standard micro thermocouple connector and bead probe
Power: Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery
LCD screen size: 37 x 49mm
Product color: Red and grey
Product size: 205 x 65 x 124mm
Product net weight: 375g
Scope of Delivery
• 1 x Uni-T Infrared Thermometer UT305C+• 1 x Type-C data cable
• 1 x Type K thermocouple probe (bead Type)
• 1 x Gift box
• 1 x Tool box
• 1 x Blister
• 1 x Warranty card
• 1 x Instruction manual
